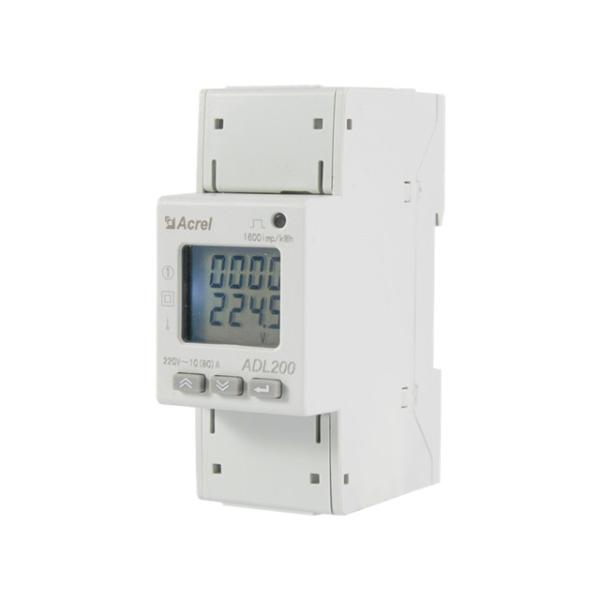

ADL200 Single-Phase DIN Rail Energy Meter

Name: ADL200 SinglePhase DIN Rail Energy Meter
Brand: Acrel
Price: 1 USD

Wholesale ADL200 Single-Phase DIN Rail Energy Meter from china suppliers

Brand Name : Acrel

Model Number : ADL200

Certification : MID

Place of Origin : China

MOQ : 1 Pieces

Payment Terms : T/T

Supply Ability : 5000pcs/day

Delivery Time : 2-3 days

Measurement : 1-phase AC kWh, Active Power, Current, Voltage

Accuracy : 1.0% (kWh)

Frequency : 45~65Hz

Rated Voltage : 220~264Vac (direct connect)

Rated Current : 10(80)A AC (direct connect)

Communication : RS485 (MODBUS-RTU)

Dimension : 90*36*65mm (L*W*H)

Installation : 35mm DIN Rail

Contact Now

General

Acrel Din Rail Single Phase AC Energy Meter is designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering.

Features

ADL200 Single-Phase DIN Rail Energy Meter

Diverse Electricity Parameters Measurement

● U (Voltage)

● I (Current)

● P (Power)

● Q (Reactive power)

● S (Apparent power)

● PF (Power factor)

● kWh (Kilowatt-hours)

● kVarh (Kilovar-hours)

ADL200 Single-Phase DIN Rail Energy Meter

Multi-rate/Flexible Tariff

● 4 Time zone

● 4 Tariff rate (Spike, Peak, Flat, Valley)

● 2 Time period list

● 14 Time period by day

HMI for Parameters Setting

● Code

● Protocol

● Address

● Baud rate

● Parity

● All Display

LCD Display

● 8 digits

Technical parameter

Input voltage	Reference voltage	AC 220V
	Reference frequency	50Hz
	Power consumption	<10VA
Input current	Basic current	10A
	Maximum current	80A
	Starting current	4‰Ib
	Consumption	<4VA
Measurement performance	Accuracy of measuring	1 class
Measurement performance	Range of measuring	000000.00~99999999kWh
Clock accuracy		Error≤0.5s/d
Active pulse	Pulse width	80±20ms
Active pulse	Pulse constant	1000imp/kWh
Communicati on	Interface	RS485(A+,B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU

Wiring

ADL200 Single-Phase DIN Rail Energy Meter

Dimension

ADL200 Single-Phase DIN Rail Energy Meter

Certification

ADL200 Single-Phase DIN Rail Energy Meter

Network

ADL200 Single-Phase DIN Rail Energy Meter

Connect us

ADL200 Single-Phase DIN Rail Energy Meter
